Description
Universal - Many Applications

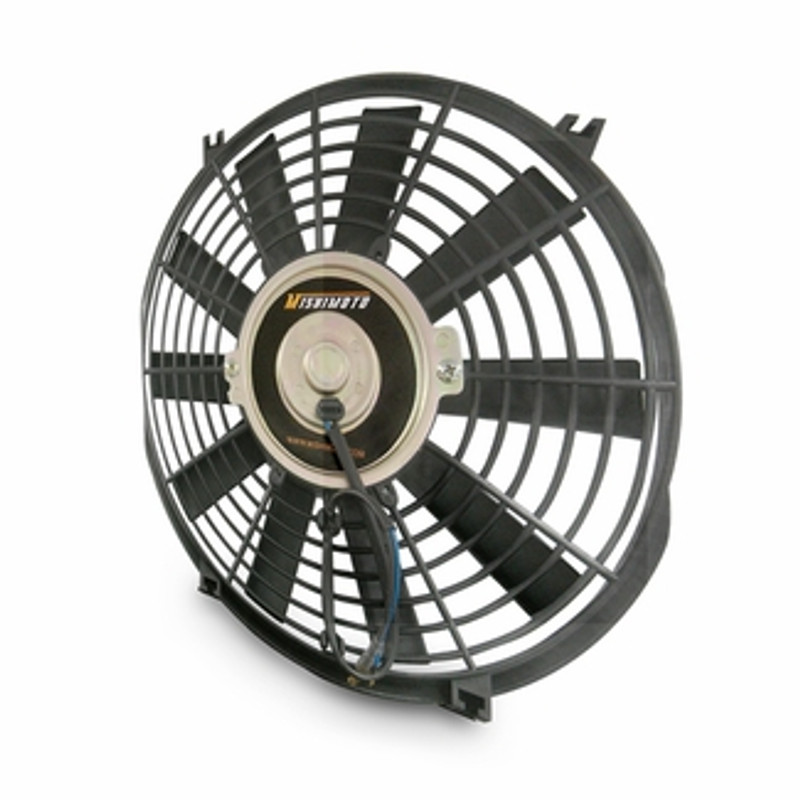

These fans can be used as an upgrade to the OEM fan for more efficient cooling or fitment issues with aftermarket products. With its slim design, the fan can easily be installed flush against a radiator. For universal installation, use Mishimoto universal fan mount kit. (P/N: MMFAN-MOUNT)
10" Tech Specs:
- CFM : 850.1
- Fan Diameter : 255mm
- Fan RPM : 2351
- Number of Blades : 10
- Current : ~6.8A
- Voltage : 12.3V
- Amps : 5.1
- Velocity Ft/Min : 660
- Inlet Pressure While Tested : -0.03
- Air Temp While Tested : 62.2° F
- Limited Liftetime Warranty
12" Tech Specs:
- CFM : 933.5
- Fan Diameter : 280mm
- Fan RPM : 2095
- Number of Blades : 10
- Current : ~8A
- Volts : 12.25V
- Amps : 5.7
- Velocity Ft/Min : 724
- Inlet Pressure While Tested : -0.04
- Air Temp While Tested : 62.6° F
- Limited Lifetime Warranty
14" Tech Specs:
- CFM : 954.1
- Fan Diameter : 328mm
- Fan RPM : 2290
- Number of Blades : 10
- Current : ~5.5A
- Volts : 12.3V
- Amps : 5.6
- Velocity Ft/Min : 740
- Inlet Pressure While Tested : -0.038
- Air Temp While Tested : 62.1° F
- Limited Lifetime Warranty
16" Tech Specs:
- CFM : 1934
- Fan Diameter : 385mm
- Fan RPM : 2041
- Number of Blades : 10
- Current : ~13.5
- Volts : 12.14V
- Amps : 10.8
- Velocity Ft/Min : 1500
- Inlet Pressure While Tested : -0.198
- Air Temp While Tested : 61° F
- Limited Lifetime Warranty
