Fits: 2005.5-2016 Dodge 5.9L/6.7L Cummins 6-Speed (Up To 800HP)

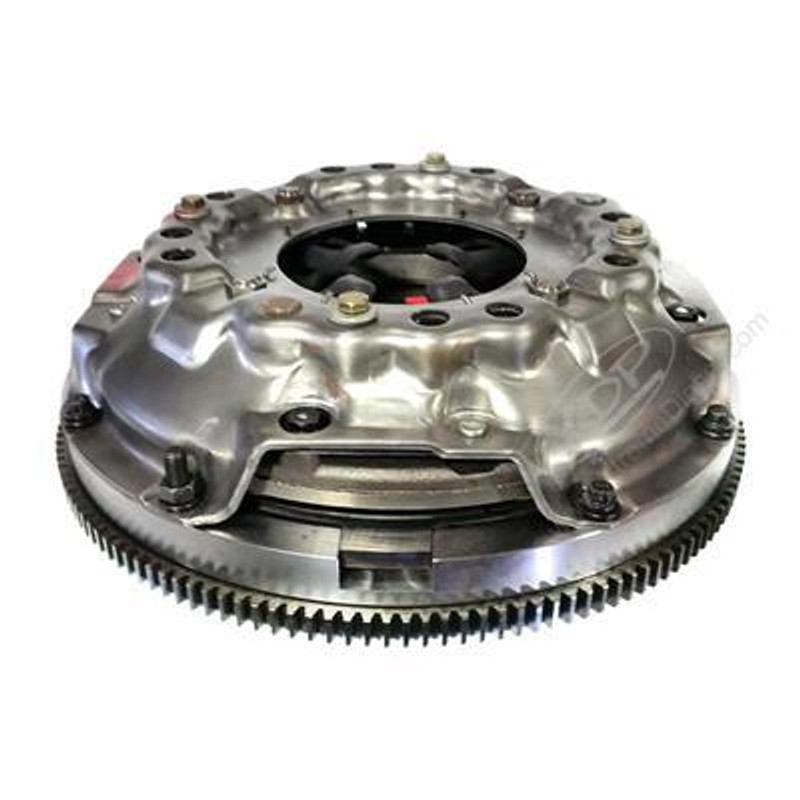

The Valair NMU70G56DDB-SI Competition Sintered Iron Dual Disc Clutch for your 2005.5-2016 Dodge 5.9L Cummins G56 6-Speed is built for more holding power and a wider range of use over a single disc clutch. These competition clutches features a billet steel flywheel with a steel insert and floater plate. They are available in multiple plate loads, allowing you to select the proper clutch for your application. See below for suggested power and plate load guide.
Features:
- Billet Steel Flywheel (SFI Approved)
- For High-Performance Competition Trucks
Plate Load Guidelines:
- 3200# - 650HP
- 3400# - 700HP
- 3600# - 750HP
- 3850# - 800HP
Kit Includes: New G56 Dual Disc Flywheel w/Steel Insert, Choice of Pressure Plate load, Sintered Iron Clutch Discs, Release Bearing, HD Pilot Bearing, Modified Clutch Fork, Bolt Kit, and Alignment Tool.
Application Notes: These competition clutches feature driving characteristics that are considered harsh, including idle noise and a "jerky" and "grabby" engagement making them less ideal for daily use. If your truck is a general use, all purpose, daily driver, the Street Dual Disc would be your better option.
G56 Gear Rollover Facts: When converting a G56 transmission over to a solid mass flywheel vs. dual mass flywheel, gear rollover is inevitable. Gear rollover noise is often heard when the vehicle is idling or under a load in low RPM ranges (often referred to as sounding like marbles in the transmission). This is completely normal.
Gear rollover noise is caused by reverse engine spike and can in most cases be drastically reduced by simply changing the oil in the transmission or reducing engine spike produced by inadequate engine components (ex. misfiring injector, FCA problems, Electronic programming). The oil recommended by the transmission manufacture Mercedes-Benz is Mobil Delvac Synthetic Transmission Fluid 50. We at Valair Inc. recommend draining completely and refilling with 7 quarts. Only 6 quarts will fit when utilizing the fill hole, the final quart will need to be filled through the shift tower.
Disengagement Noise: On all dual and triple disc clutches, a noise will be associated with the disengagement of the clutch. This is due to the intermediate plate(s) floating freely in the lugs of the flywheel. This is NOT a bad throw out bearing!!! The noise can possibly get more noticeable during the break-in period of the clutch due to the intermediate plate(s) seating in.
This clutch is built to order and may take an additional 3-5 days to build before shipping. Please plan accordingly when ordering.
Valair Heavy Duty Replacement Hydraulics NMU70HYD-03 are required (sold separately). See related items below.
