Description
Fits: 1994-2002 Dodge Ram 2500/3500 4WD (Rear) Lifted 0-1"
Part Number: 24-185783
Old Part Number: F4-BE5-6682-H7;F4-BE5-6682-H8
Setting: 5100 Series
Drive Type: 4WD
Position: Rear
Descriptor: Rear Lifted Height: 0-1"
Quantity Needed Per Vehicle: 2
*Collapsed Length (IN): 16.16
*Extended Length (IN): 26.14
*Collapsed Length (MM): 410.5
*Extended Length (MM): 664
Finish: Zinc plated
Reservoir: No
Body Design: 46mm ID smooth body (Non-coilover)

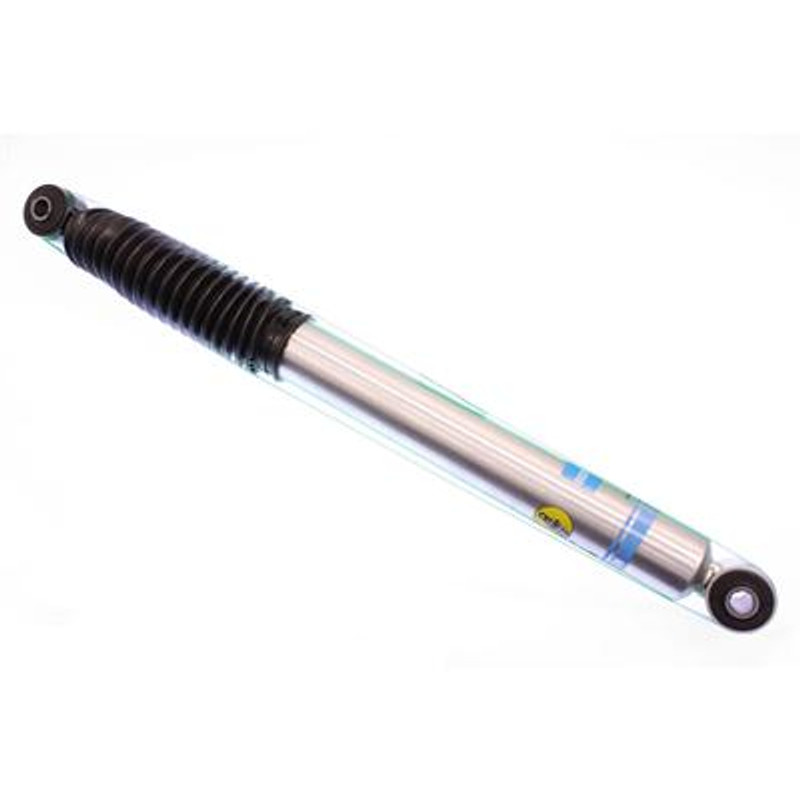

Bilstein 5100 Series Shock Absorbers are high gas pressure monotube shocks designed specifically for lifted pickups, SUVs and Jeeps. The shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. They offer super damping ability that makes them ideal for heavy hauling or occasional off-road use, while maintaining an exceptional street ride. (zinc-plated steel body, Triple-C-Technology coating )
0-1" Lift is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. An eye to eye shock is measured from the center of one eyelet to the center of the other eyelet
Shock Absorbers sold individually.
