Description
Fits: 2001-2010 GM 2500/3500HD 4WD (Front) Lifted 4"-6"*
Part Number: 24-187183
Old Part Number: F4-BE5-E710-H1
Setting: 5100 Series
Position: Front
Front Spring Type: Torsion Bar
Rear Spring Type: Leaf
Descriptor: Excludes vehicles equipped with Quadrasteer; Front Lifted Height: 4-6"
Quantity Needed Per Vehicle: 2
*Collapsed Length (IN): 13.52
*Extended Length (IN): 21.46
*Collapsed Length (MM): 343.3
*Extended Length (MM): 545
Finish: Zinc plated
Reservoir: No
Body Design: 46mm ID smooth body (Non-coilover)

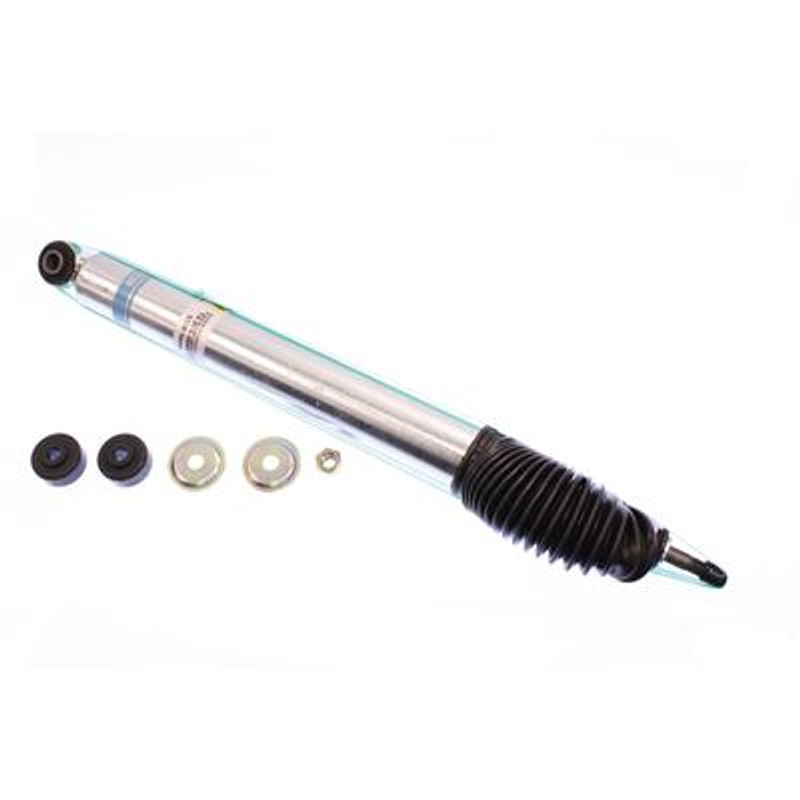

Bilstein 5100 Series Shock Absorbers are high gas pressure monotube shocks designed specifically for lifted pickups, SUVs and Jeeps. The shocks feature a 46mm digressive piston with self-adjusting deflective disc valving. They offer super damping ability that makes them ideal for heavy hauling or occasional off-road use, while maintaining an exceptional street ride. (zinc-plated steel body, Triple-C-Technology coating )
*Lift Height is suggested by mfg. Due to the many different aftermarket suspension systems it is recommended that a measurement is taken for proper application. A pin to eye shock is measured from the base of the stem where the mounting hardware rests to the center of the eyelet.
Shock Absorbers sold individually.
Applications:
01-10 GM 2500/3500 HD (Non-Quadrasteer)
